AS400PGMCALL Function (Magic xpa 3.x)

The syntax used for calling an IBM i program from Magic xpa is:

UDF(‘MGEAC32.AS400PGMCALL’, A,B,C,D)

Where:

• A represents IBM i System Name; character variable

• B represents Program Library/Program Name; character variable

• C represents Parameter; character variable (any length)

• D represents Parameter length; numeric variable

• The function returns data received from the IBM i program.

The parameters passed and received must be in alphanumeric format only. The maximum length for the return string is 2048.

When called as a user-defined procedure, the passed parameter is updated upon return to its full length. For more information, see the section on the Invoke UDP operation in the Magic xpa Help.

Example:

The following is an example of using the UDF function to call the AS400PGMCall program:

Result field = UDF(‘MGEAC32.AS400PGMCALL’,’MAGICLNX’,’TEST/CHGDTAARA’,A,40)

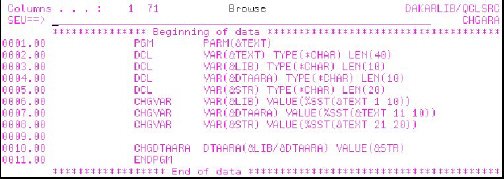

The AS400PGMCall command activates the CL program that changes the Data Area content in IBM i, as shown below.
